Prototyping deck

Prototyping deck

SKU: 114990115
$4.00

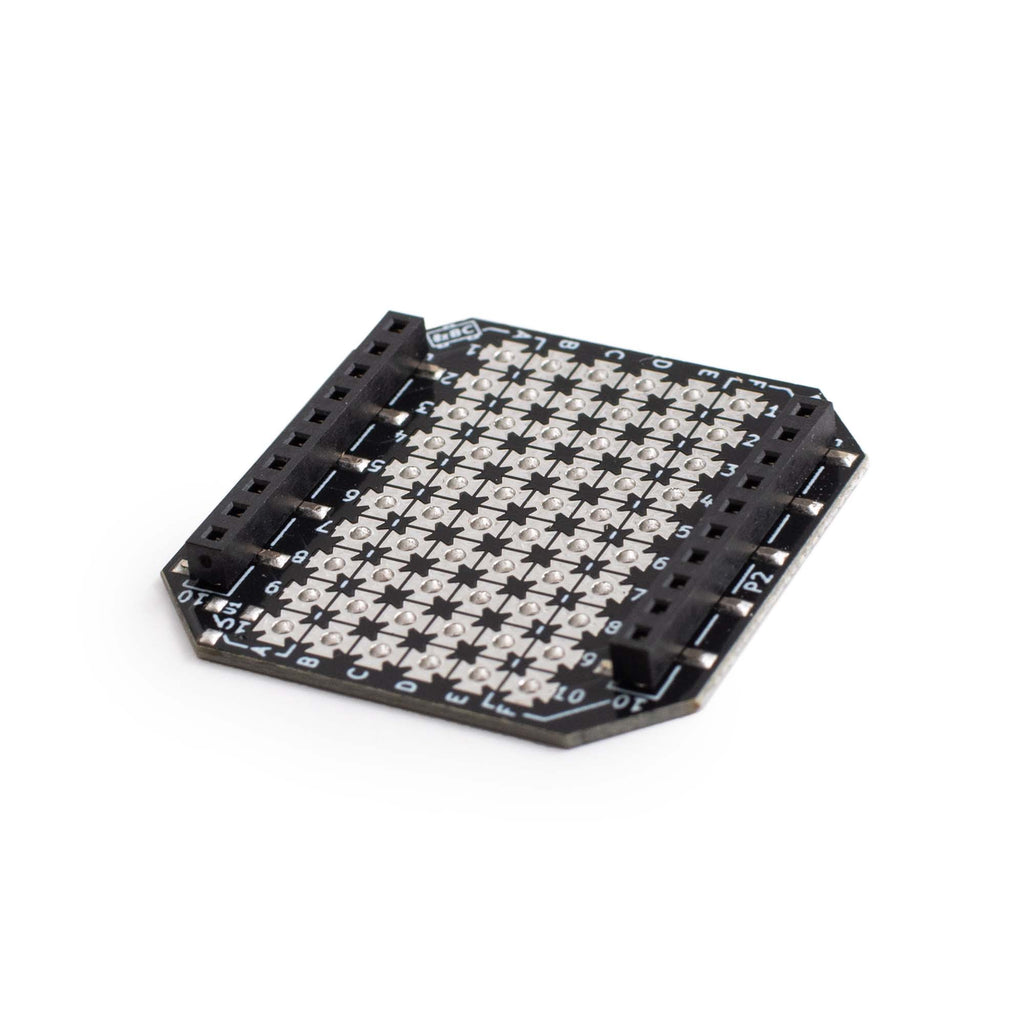

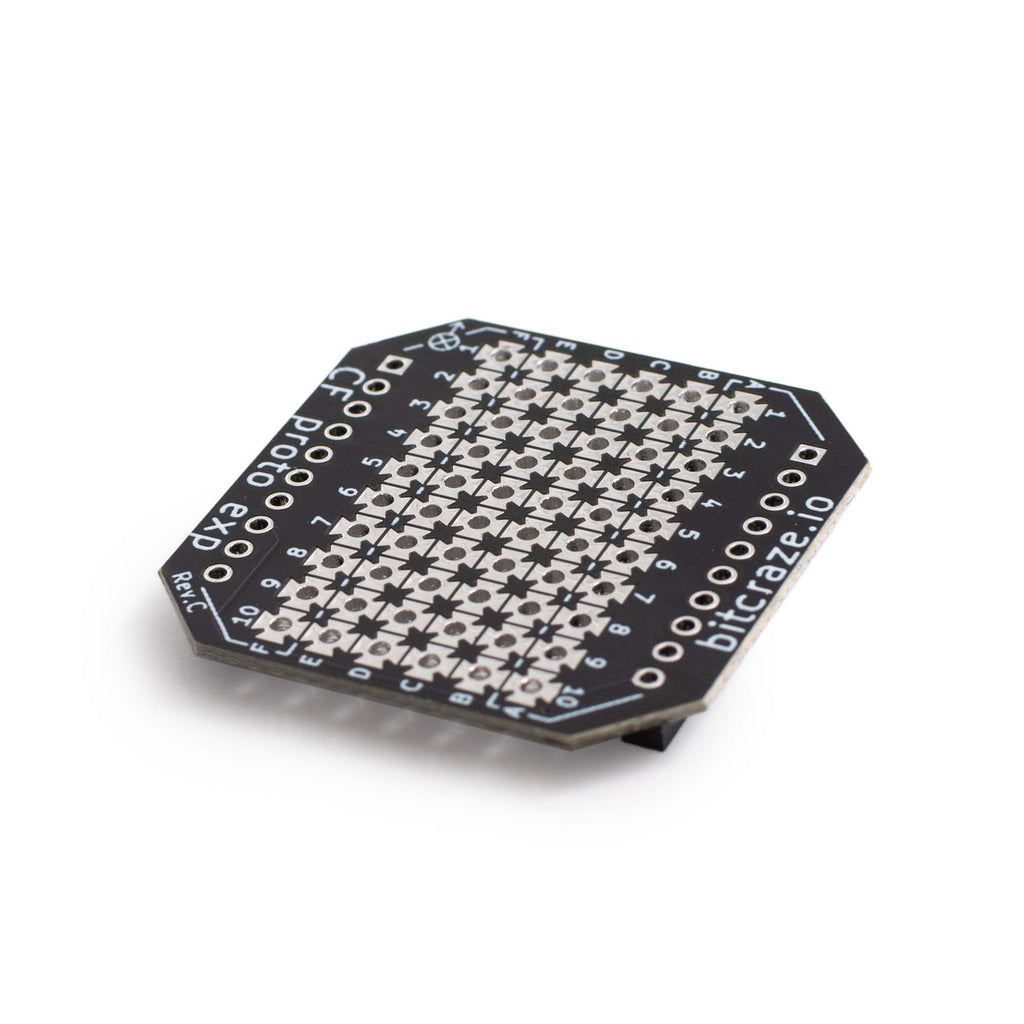

Add a prototyping area to your Crazyflie 2.0 and lift your electronics into the air. Just solder directly on the expansion board and plug it to the expansion port.

For more information, see the Prototyping deck web page

Features

  • Soldering pads support both though hole and SMD components
  • Has SOT-23 footprint for 1-wire memory used for automatic detection (not mounted)

Specifications

  • Makes all 20 pins in the Crazyflie 2.0 expansion port available
  • 40 pads for prototyping (supporting both though hole and SMD components)
  • Footprint for optional 1-wire memory (not mounted)
Mechanical specifications
  • Weight: 1.5 g
  • Size (BxHxW): 28x28x4mm
  • Designed for mounting above or under the Crazyflie 2.0

    Compatibility

    • Works with the Crazyflie 2.0

    Package content

    • 1 x Prototyping expansion board
