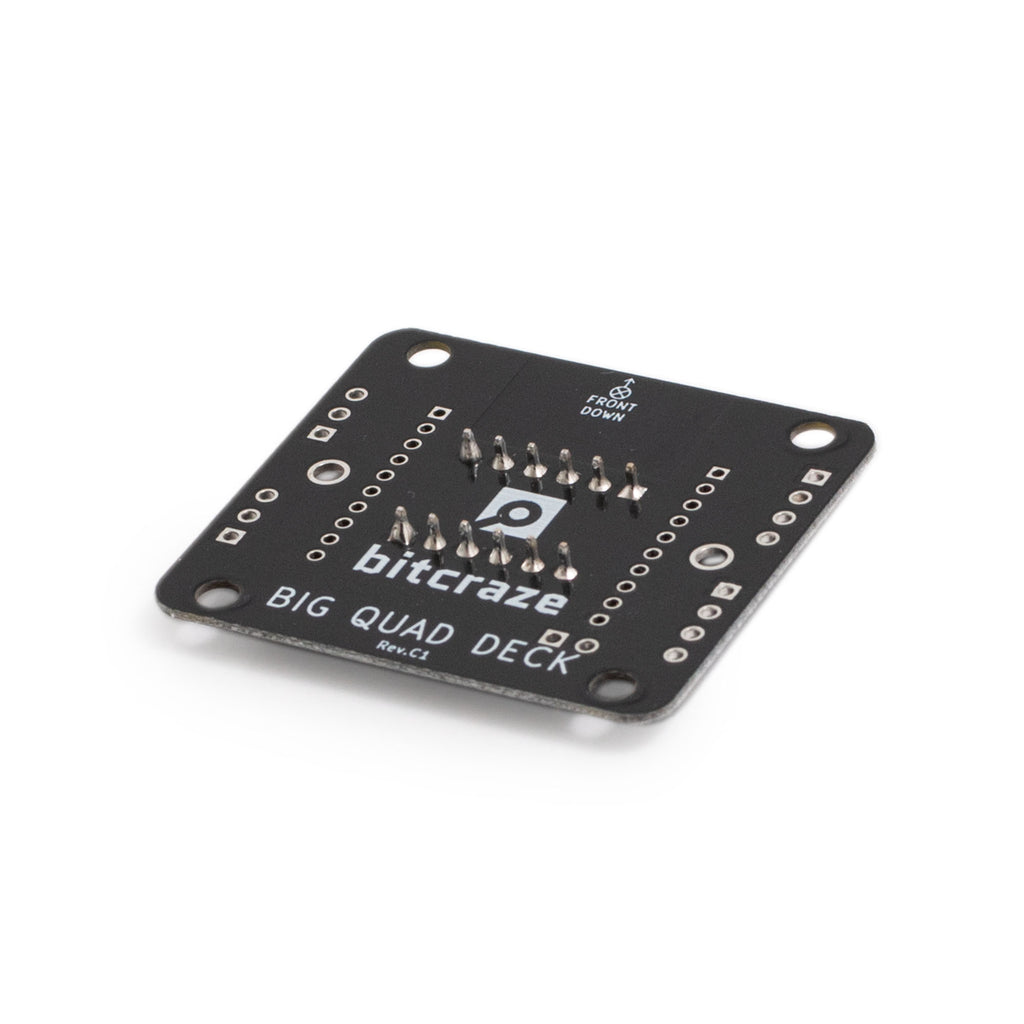

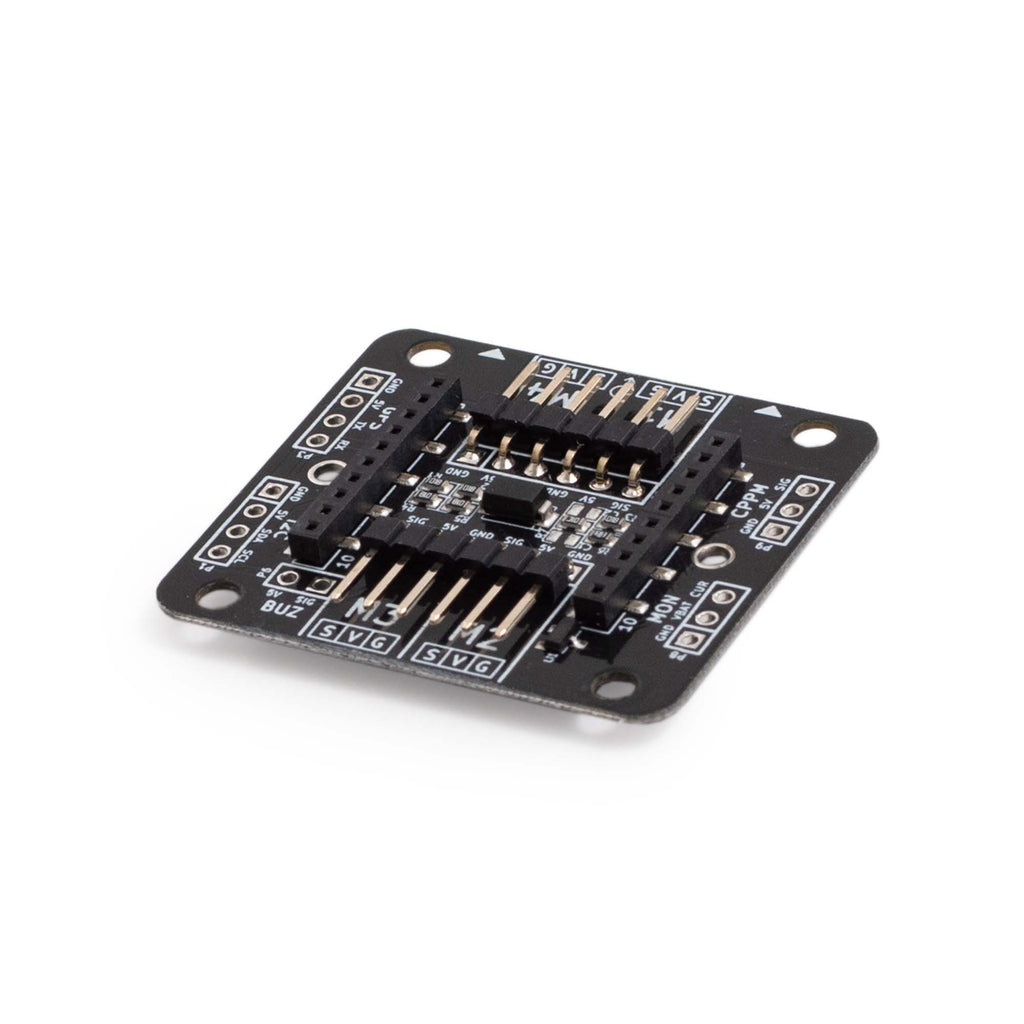

BigQuad deck

BigQuad deck

SKU: 102990227
This product is in early access stage. It means that while the hardware is working and tested, the software is still pretty much work in progress. For more information see the early access description page.

With the BigQuad deck you can transform your Crazyflie 2.X to a bigger quad by connecting external Electronic speed controllers (ESCs) to the breakout connectors on the deck. The autodetection of the deck makes this transformation possible to do in seconds. The deck also contains breakout header connectors for additional accessories such as external receiver (CPPM input) and GPS. It can also monitor battery voltage and current.

For more details, please see the product page on our web.


  • 4 x ESC connectors
  • 0.1” header mounting holes for additional connectivity:
    • CPPM input (3 pin)
    • GPS input (4 pin)
    • I2C expansion  (4 pin)
    • Battery and current monitoring input (3 pin)
    • Buzzer output (2 pin)
  • Connect one or two additional decks
  • Automatic detection of expansion deck

Package contents

  • 1 x BigQuad deck
  • 4 x M2x4 nylon screw
  • 2 x M2x6 hex spacer
