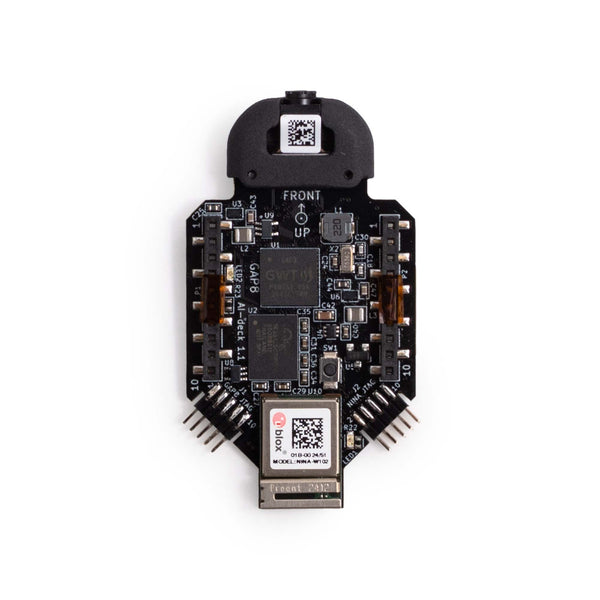

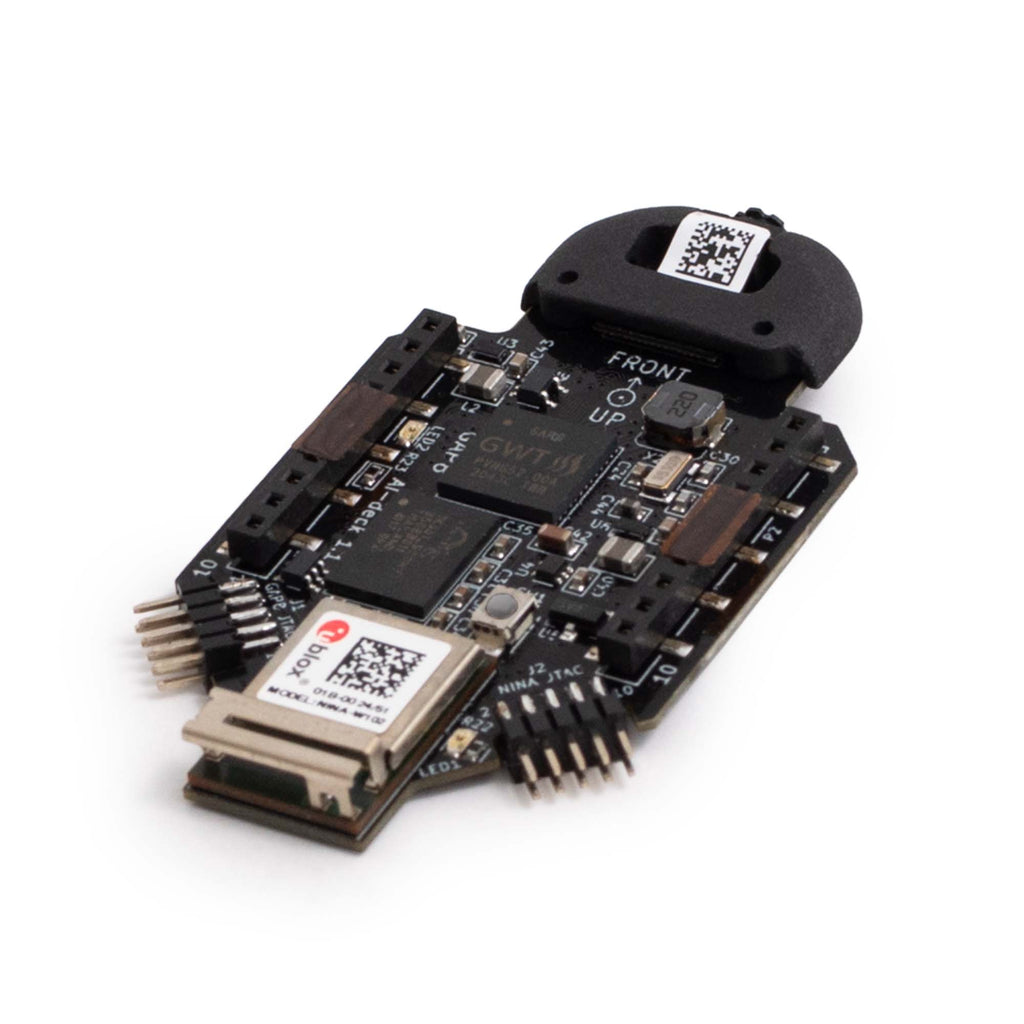

AI-deck 1.1
⚠️ Important Notice: The GreenWaves Technologies website is down, preventing fetching and compiling the autotiler. This means that deploying neural networks through gap_sdk or our Docker image is not possible unless you already have the required autotiler file. However, you can still deploy neural networks using DORY as an alternative.
For more details, updates and workarounds, see our announcement here.
Edge AI compute for the Crazyflie is now available! The AI-deck is intended for researchers and developers who want to build and experiment with their own embedded AI applications.
It combines a GAP8 processor and a grayscale camera to provide the hardware for onboard perception and AI processing. The platform is lightweight and low-power, making it ideal for prototyping and experimentation on the Crazyflie 2.x UAV for users familiar with embedded system development.
The onboard ESP32 provides WiFi connectivity and can be programmed for custom communication or integration tasks. Functionality such as AI workloads and connectivity is intended to be developed by the user, making the platform highly adaptable for custom research and prototyping.
Requirements for Setup
To set up and use this board, a compatible JTAG programmer/debugger is required for flashing, debugging, and restoring the bootloader. Please review the setup instructions carefully and ensure you have the necessary accessories and familiarity with embedded systems development before purchase.
We recommend the Olimex ARM-USB-TINY-H.
The AI-deck 1.1 version only has minor updates compared to the AI-deck 1.0. The Himax camera module is now the greyscale version and the GAP8 is now revision C instead of B. For more details read this blog post and if the Bayer RGB version camera is wanted it can be bought stand alone here.
For full setup and technical details, please refer to the product page on our website and review all setup documentation.
Features
-
GAP8 Ultra-low power 8+1 core RISC-V IoT Application Processor
- Himax HM01B0 – Ultra low power 320×320 grayscale camera.
- 512 Mbit HyperFlash and 64 Mbit HyperRAM
- ESP32 for WiFi and more (NINA-W102)
- 2 x Cortex-M 10-pin JTAG for GAP8 and ESP32
- Button connected to ESP32 for UART bootloader or other action
- 1 x green LED connected to GAP8 (A2)
- 1 x green LED connected to ESP32 (GPIO_24)
- Can work stand alone. Power board on VCOM
- Can be mounted above or under the Crazyflie 2.X
Package contents

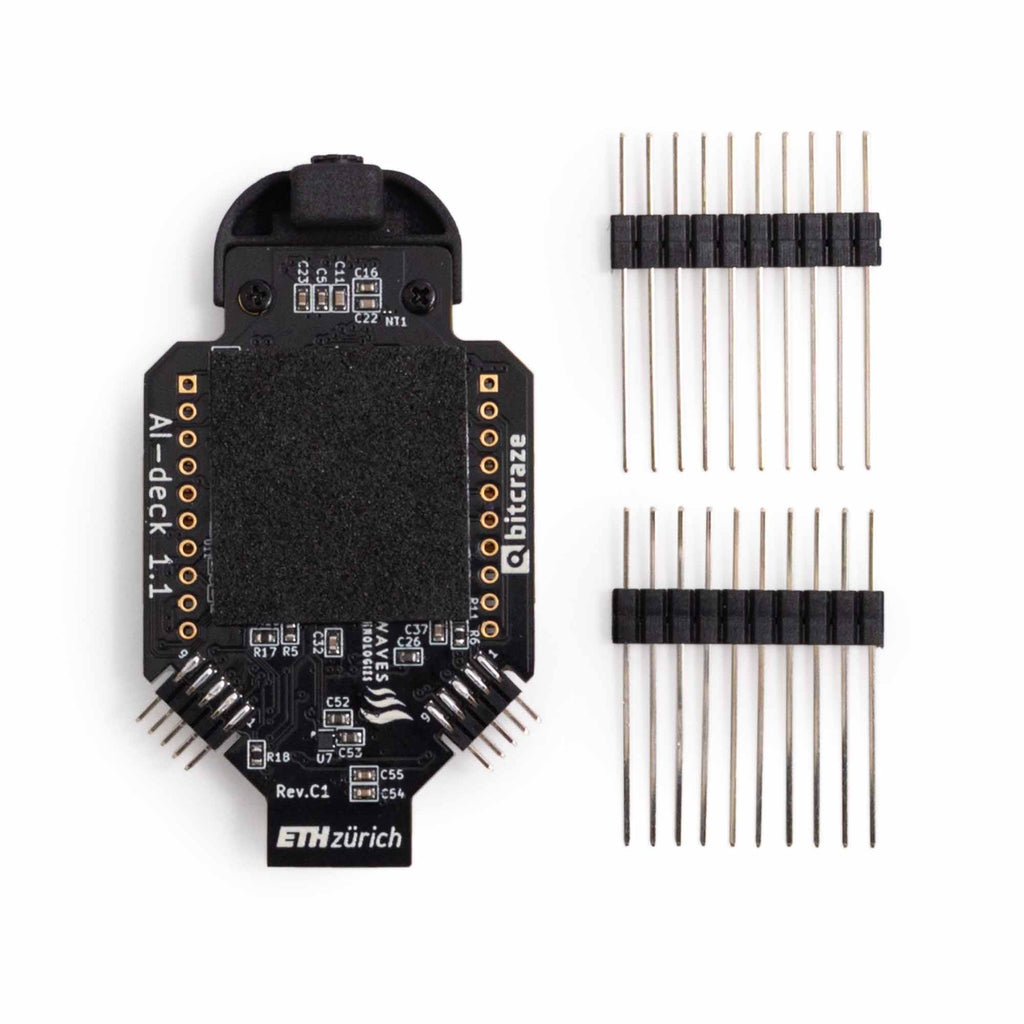

- 1 x AI-deck 1.1
- 2 x Long pin headers ( pin 15mm - plastic 4mm - pin 6mm)
Resources
Country of origin: China
