Loco positioning node

Loco positioning node

SKU: 114990656

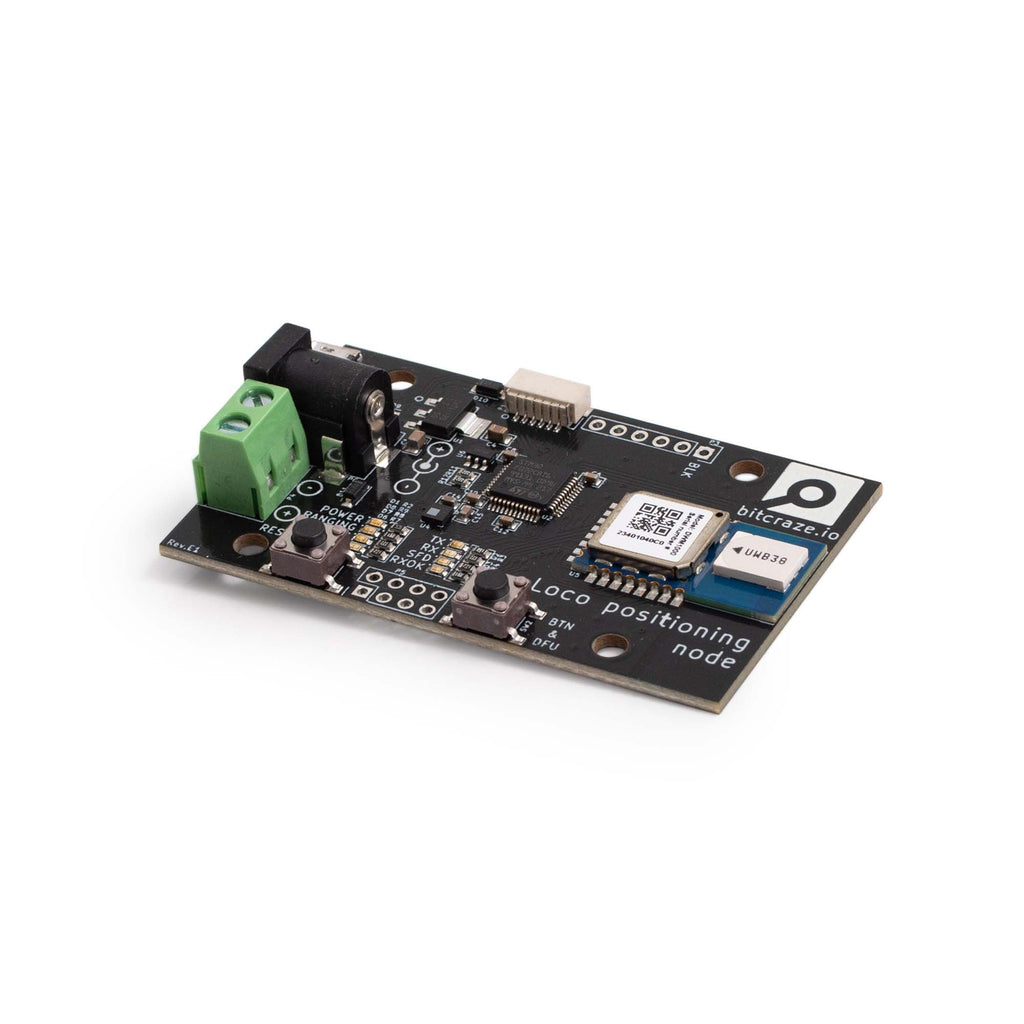

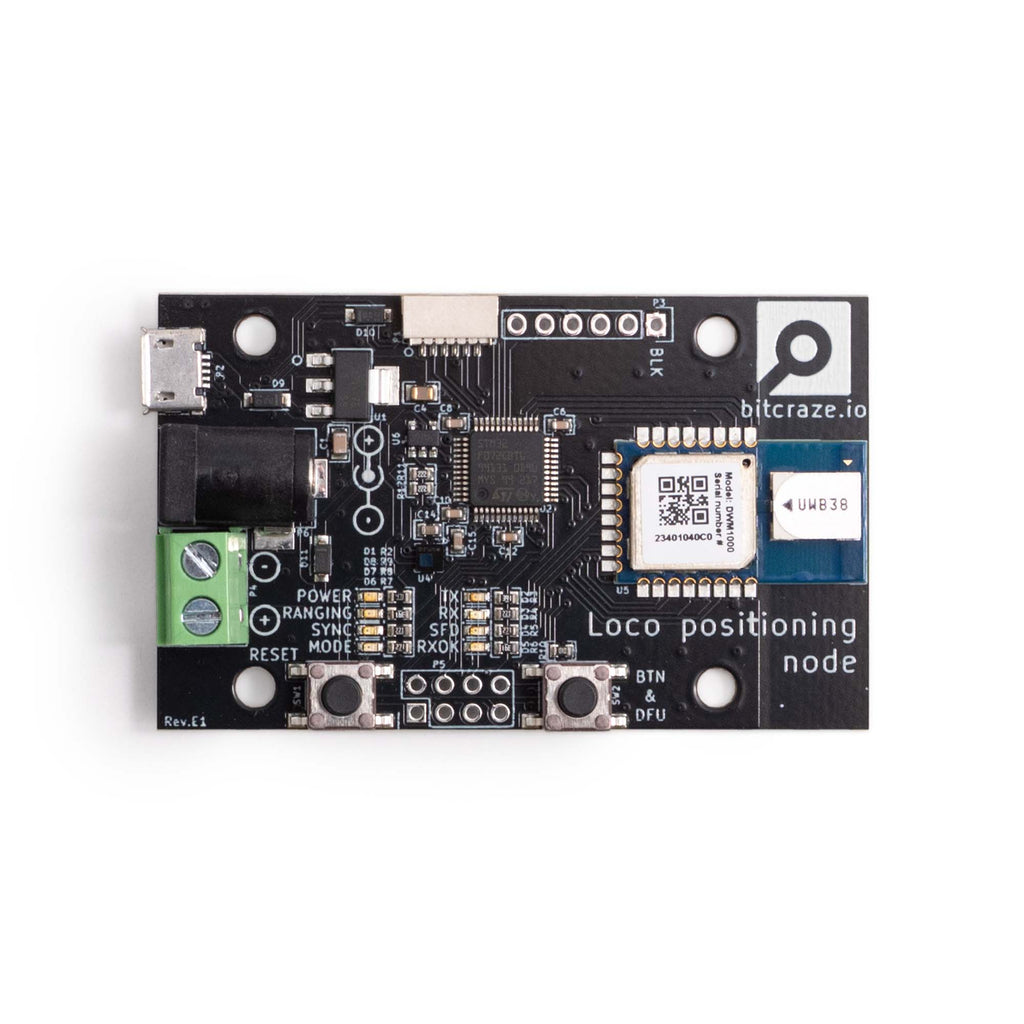

The Loco Positioning Node is a versatile positioning device that mainly is used as an Anchor. The system measures the distance between Nodes and Tags, and from those distances the absolute position of objects carrying Tags can be calculated.

For more information on the Loco Positioning System please see this Loco Positioning System page.

Specifications are based on the standard 2-way ranging mode.


  • Supports Anchor and Sniffer mode, as well as a limited TWR Tag mode (no position estimation)
  • Can be used as a standalone system with some Nodes acting as Anchors and one Node acting as a Tag reporting distances to the Anchors.
  • Multiple powering options
  • On board MCU

Electrical specification

  • Based on the Decawave DWM1000 module
  • Implements IEEE 802.15.4 UWB
  • STM32F072 MCU (Cortex-M0, 48MHz, 16kb SRAM, 128kb flash)
  • High precision pressure sensor (LPS25H)
  • uUSB connector
  • Full speed USB device interface
  • Powered by USB, 6 mm barrel jack (5 - 12V) or screw terminal (5 - 12V)
  • FTDI debug port (not populated)
  • Serial connector compatible with ESP8266 module (not populated)
  • Power consumption 180 mA max

Ranging specification

  • Ranging accuracy ±10 cm according to DWM1000 spec. See the wiki for measurements.
  • Maximum tested range 10 m
  • Nr of anchors required: theoretical minimum of 4 for 3D positioning. More anchors adds redundancy and accuracy, up to 8 supported.

Radio specification

  • Operates at 3.2 - 7 GHz
  • Channel bandwidth 500 MHz

Mechanical specification

  • Weight: 13.3 g
  • Size (WxHxD): 65x40x13 mm
  • 4 mounting holes for M3 screws


  • Works with the Loco Positioning Deck

Package contents

  • 1 x Loco Positioning Node
