4 x 7x20 mm DC-motor pack for Crazyflie 2.X (thrust upgrade)

4 x 7x20 mm DC-motor pack for Crazyflie 2.X (thrust upgrade)

SKU: 114992987
$15.00

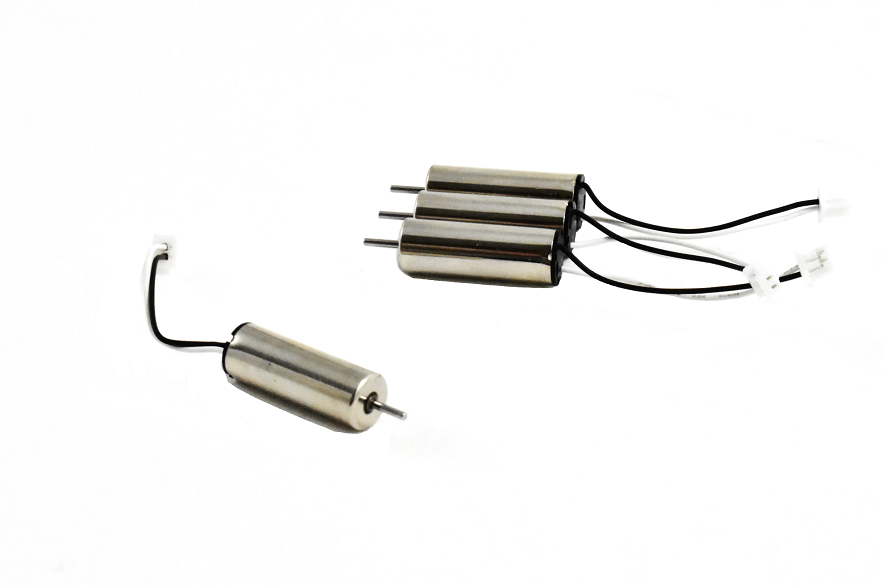

Pack of 4 spare 7x20 mm brushed coreless DC-motors for Crazyflie 2.X.

These motors that are 4 mm longer then the standard 7x16 mm motors will generate more thrust. Approximately 5 grams added trust per motor together with the 51MMX2 propeller, giving a total of 20 grams more thrust. Comes at the expense of roughly 15% less flight time. Can also be bought in a bundle.

Note: This motor has a 1 mm shaft and the stock propeller will not fit this motor.

Mechanical specifications
  • Diameter: 7.0 mm
  • Length: 20.0 mm
  • Shaft length: 5 mm
  • Shaft diameter: 1 mm
  • Weight: 3.6 g
  • Wire length: 32.0 mm
  • Molex picoblade 2P connector
    Electrical specifications
    • Kv: 13 000 rpm/V (±15%)
    • Rated voltage: 3.4V DC
    • Rated current: 2600mA (max)
    • Terminal resistance: 0.75 Ω (±20%)

      Package contents

      • 4 x 7x20mm brushed coreless DC-motors
