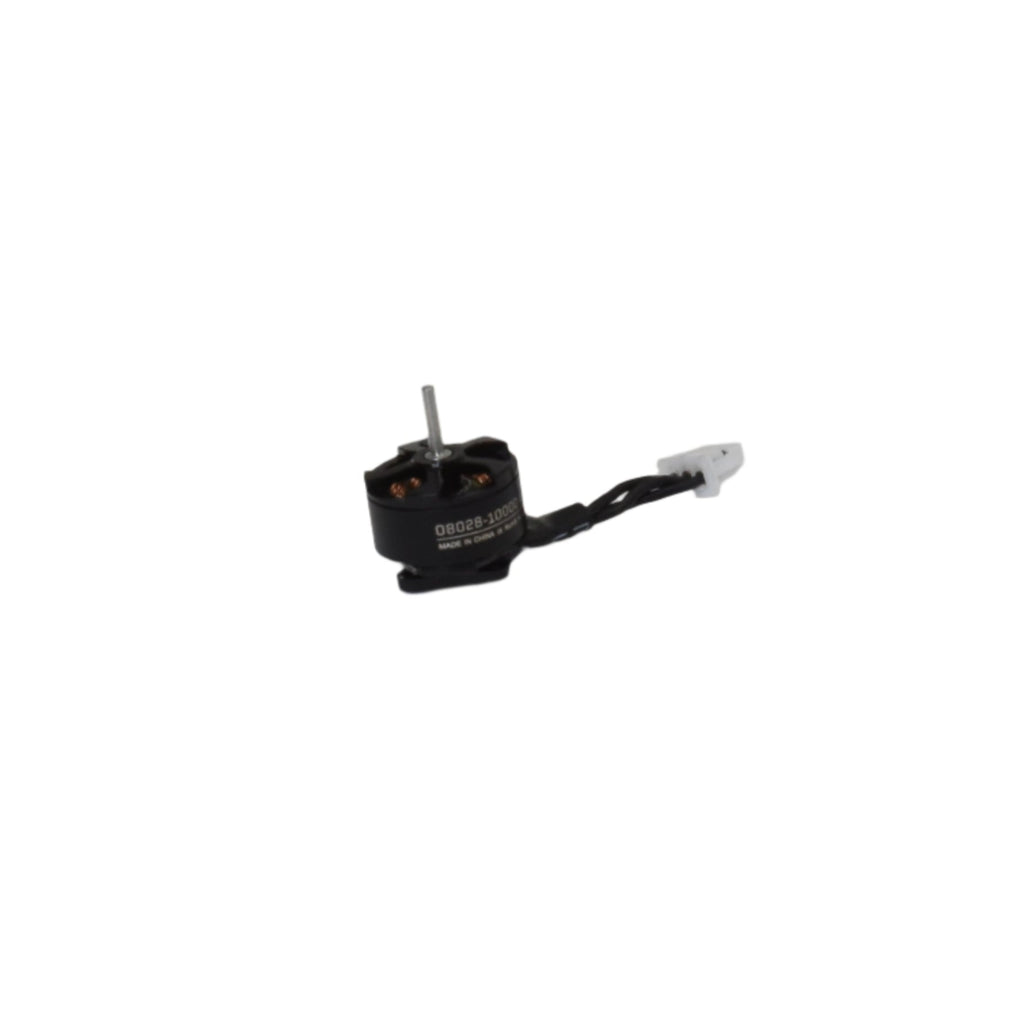

Crazyflie 2.1 Brushless: 08028-10000KV brushless motor

This product is a spare part for the Crazyflie 2.1 Brushless

Key Features

• Dual ball bearings for reduced friction and extended motor life.
• Optimized for efficiency, ~5 g/W @ 10 grams thrust with BC55-35 propeller.
• High-quality built with 0.2mm Kawasaki silicon steel sheets and aviation aluminum alloy AL2A12.


Specification

• Motor KV: 10000
• Internal resistance (mOhm): 520
• Stator Diameter (mm): 8.4
• Stator Height (mm): 2.8
• Stator slots: 9
• Stator poles: 12
• No-Load current (A@4V): 0.40
• Peak Current (A): 1.8
• Max Instantaneous Power (W): 7.2
• Overall Dimension (mm): Ø10.7*L13.8
• Shaft Diameter (mm) Ø1.0*L5.0
• Rated Voltage (V): 4.2 (1S)
• Propeller (mm): Bitcraze 55-35
• Weight with cable (g): 2.3

Package contents

• 1 x 08028-10000KV brushless motor
• 5 x M1.4*3.7mm black philips screws
