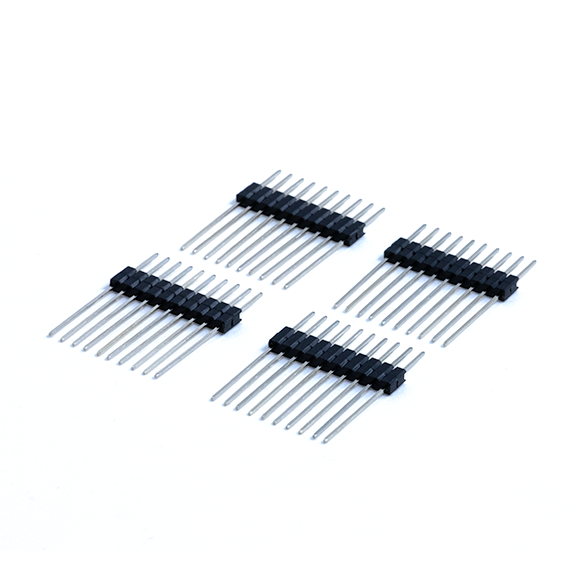

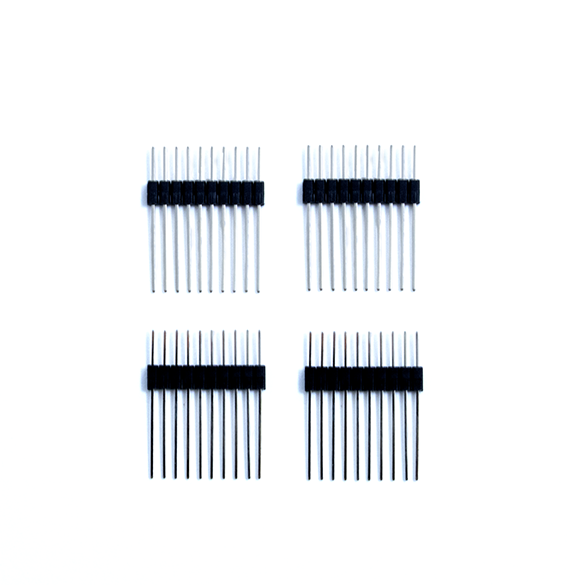

Long Pins (15+4+6mm)

This product is intended to be used together with the Crazyflie 2.x expansion deck system and makes it possible to fit 3 decks. Optimized to fit one deck on top and two decks on the bottom of the Crazyflie 2.x. The wider plastic spacer provides extra support for the AI-deck when mounted underneath, helping keep it level.

Specifications

• Number of positions: 10
• Spacing: 2mm
• Pin thickness: 0.5mm
• Sections: pin 15mm - plastic 4mm - pin 6mm
• Weight: 0.7g
• Size (BxHxW): 20x25x2mm


Package contents

• 4 x Long Pins (15+4+6mm)

Resources

• Datasheet
• Learn more about the pins in the overview of Expansion decks of the Crazyflie 2.x
